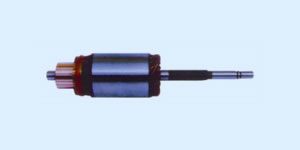

BOSCH Armature
WAI:61-9132/IM2110 12V
Slots:23
Dim: 163mm OAL 11-Splines
7.89mm Shaft OD 9.93mm Shaft OD
REPLACING: 1004011040, 1004011054
REPLACING:
1004011040, 1004011054
SERVCING:
0001110063, 0001110068 |

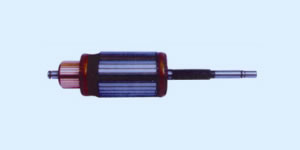

WAI:61-9130 IM2113, IM2118 12V
Slots:28
Dim: 123mm OAL 9-Splines
7.89mm Shaft OD 9.93mm Shaft OD
REPLACING: BOSCH 1004011046, 1004011058, 1004011063, 1004011097
REPLACING:
BOSCH 1004011046, 1004011058,
1004011063, 1004011097
SERVICING:
BOSCH 0001107031, 0001107032,
0001107037, 0001107038
|

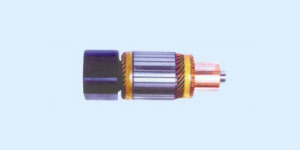

IM2114 12V
Slots:23
Dim: 149mm OAL, 59mm O.D, 16-Splines
REPLACING: BOSCH 1004011041, 1004011045, 1004011055, 1004011099, 1004011902
REPLACING:
BOSCH 1004011041, 1004011045, 1004011055, 1004011099, 1004011902
SERVICING:
BOSCH 0001109001, 0001109002, 0001109003, 0001109006, 0001109007, 0001109008, 0001109009, 0001109011 |

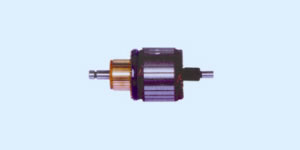

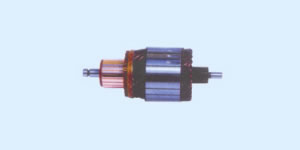

WAI:61-9134 IM2100 12V
Slots:13
Dim: 158mm OAL, 18-Splines
8.00mm Shaft OD 10.00mm Shaft OD
REPLACING: BOSCH 1004012450, 1004112450, 9001140339
REPLACING:
BOSCH 1004012450, 1004112450, 9001140339
SERVICING:
BOSCH 0001218002, 0001218003, 0001218004, 0001218005, 0001218007, 0001218008 |
 |
 |
 |
 |
BOSCH Armature

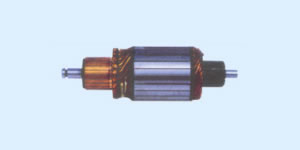

WAI:61-9124 IM105 24V
Slots:29
Dim:256.0mm OAL, 83.0mm O.D
REPLACING: BOSCH 2004005023, 8121267
REPLACING:
BOSCH 2004005023, 8121267
SERVICING:
BOSCH 0001417001, 0001417002, 0001417005, 0001417006, 0001417007, 0001417008, 0001417012, 0001417013 |

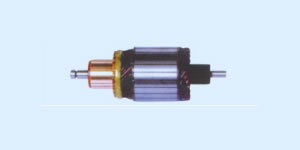

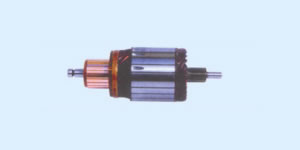

IM2115 12V
Slots:23
Dim: 160mm OAL, 59mm O.D, 15-Splines
REPLACING:1004011059, 1004011201
REPLACING:
1004011059, 1004011201
SERVCING:
0001110009, 0001110010, 0001110122, 0001110123, 0001124001, 0001124002
|

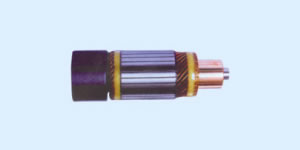

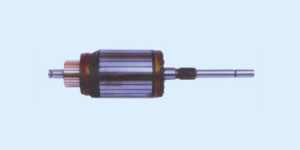

WAI:61-9109 IM152 24V
Slots:33
Dim:333.0mm OAL, 74.8mm O.D, 10-Splines
REPLACING: BOSCH 2004004111, 2985056
REPLACING:
BOSCH 2004004111, 2985056
SERVICING:
BOSCH 0001360002, 0001360003,
0001360004, 0001360005, 0001360007,
0001360008, 0001360009, 0001360012,
0001360013, 0001360015, 0001360016 |

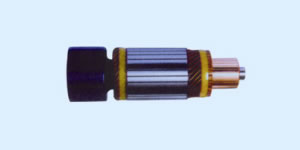

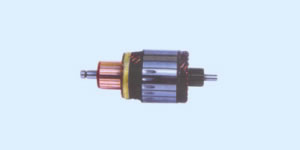

WAI:61-9113 IM122 24V
Slots:29
Dim:235.5mm OAL, 83mm O.D
REPLACING: BOSCH 2004005022, 2004005153, 2004005046, 79052243, 93193275
REPLACING:
BOSCH 2004005022, 2004005153,
2004005046, 79052243, 93193275
SERVICING:
BOSCH 0001410018, 0001414001,
0001414002, 0001414003, 0001414004,
0001414005, 0001414006, 0001414008 |
 |
 |
 |
 |
BOSCH Armature

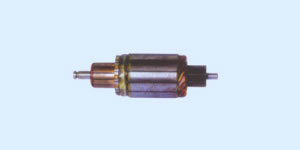

IM1113 12V
Slots:27
Dim:271.0mm OAL
65.0mm O.D, 10-Splines
REPLACING: 9001083498
REPLACING: 9001083498
SERVCING: 9000083064, 9000083065, 9000083073 |

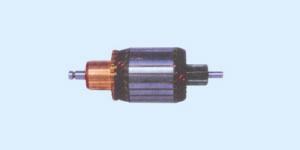

IM1133 12V
Slots:27
Dim:271.0mm OAL
65.0mm O.D, 10-Splines
REPLACING: BOSCH 1004003155, 1004003157, 1004003176, 1004003916, 1004003918
REPLACING:
BOSCH 1004003155, 1004003157,
1004003176, 1004003916, 1004003918
SERVICING:
BOSCH 0001314046, 0001314047, 0001314049 |

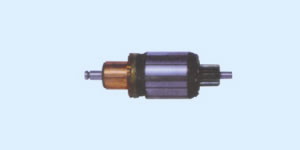

WAI:61-9131 IM2106, IM2101, IM2104 12V
Slots:23
Dim:163mm OAL, 15-Splines
7.89mm Shaft OD 9.93mm Shaft OD
REPLACING:
1004011022, 1004011044,
1004011047, 1004011025, 1004011031
IM2106, IM2101, IM2104
REPLACING:
1004011022, 1004011044,
1004011047, 1004011025, 1004011031
SERVCING:
0001110001, 0001110002,
0001110004, 0001110013, 0001110014
For: Bosch 110 Series PMGR Starters
Used on: (2002-82) Audi, BMW, Jaguar, Land Rover, Mercedes, Volk |

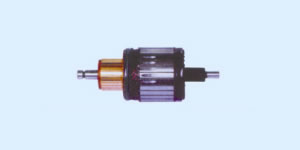

WAI:61-9128/IM2111 12V
Slots:28
Dim:138mm OAL, 9-Splines
7.92mm Shaft OD 9.93mm Shaft OD
REPLACING:
BOSCH 1004011043, 1004011057
REPLACING:
BOSCH 1004011043, 1004011057
SERVICING:
BOSCH 0001108115, 0001108145,
0001108153 |
 |
 |
 |
 |
BOSCH Armature
IM2109 12v
Slots:23
Dim:148mm OAL
58.9mm O.D, 18-Splines
REPLACING:
1004011041, 1004011045, 1004011055,
1004011099, 1004011902
REPLACING:
1004011041, 1004011045, 1004011055,
1004011099, 1004011902
SERVCING:
1109001, 1109002, 0001109003,
0001109006, 0001109007, 0001109008 |

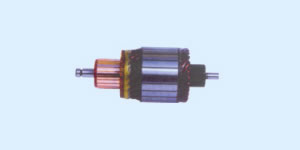

WAI:61-9129 IM2112, IM2116, IM21119 12V
Slots:28
Dim:123mm OAL, 11-Splines
7.89mm Shaft OD 9.93mm Shaft OD
REPLACING:
BOSCH 1004011039, 1004011042,
1004011062, 1004011068, 1004011086
REPLACING:
BOSCH 1004011039, 1004011042,
1004011062, 1004011068, 1004011086
SERVICING:
BOSCH 0001107003, 0001107004,
0001107005, 0001107006, 0001107007,
0001107008, 0001107009, 0001107012 |
IM2120 12V
Slots:23
Dim:149mm OAL
59mm O.D, 13-Splines
REPLACING: 1004011072, 1004011088
REPLACING: 1004011072, 1004011088
SERVCING: 0001109014, 0001109015,
0001109025, 0001109026, 0001109028,
0001109029, 0001109030, 0001109031,
0001109033, 0001109034, 0001109035,
0001109036, 0001109041 |
IM2117 12V
Slots:13
Dim:151.5mm OAL
50mm Shaft O.D, 15-Splines
REPLACING:1004011046, 1004011063
REPLACING:
1004011046, 1004011063
SERVCING:
0001218162, 0001218165,
0001218172, 000118173 |
 |
 |
 |
 |

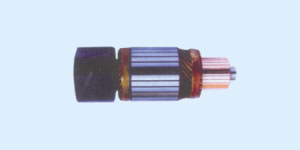

BOSCH Armature
WAI:61-9112 IM124 24V
Slots:29
Dim:270.3mm OAL
83.0mm O.D
REPLACING: BOSCH 2004005025
REPLACING:
BOSCH 2004005025
SERVICING:
BOSCH 0001410016, 0001410017,
0001410019, 0001410021, 0001410022,
0001410029, 0001410041, 0001410044 |
IM2133 12V
Slots:23
Dim:158mm OAL
50mm O.D, 18-Splines
REPLACING: 9003334024
REPLACING: 9003334024
SERVCING:
0001219001, 0001219005, 0001219006,
0001219007, 0001219008, 0001219009,
0001219010, 0001219011, 0001219012,
|

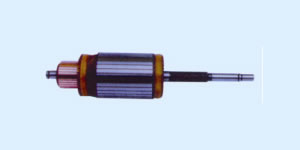

WAI:61-9110 IM151 12V
Slots:33
Dim:333.0mm OAL
74.8mm O.D 10-Splines
REPLACING: BOSCH
2004004112, 9001140275
REPLACING:
BOSCH 2004004112, 9001140275
SERVICING:
BOSCH 0001358004, 0001359001,
0001359002, 0001359003, 0001359004,
0001359008, 0001359010, 0001359012
|
WAI:61-9114 IM138 12V
Slots:29
Dim:235.5 mm OAL
83mm O.D
REPLACING: BOSCH
2004005026, 2004005155
Replaces:
Bomag 057-269-19;
Bosch 2-004-005-026, 2-004-005-155;
KHD 42485211;
Mercedes 000-151-27-15, 000-151-41-15;
Volvo 6643671, 847985;
Ref. No. 5020-3033
Unit Nos:
Bosch 0-001-413-001, -004, -006, -010, -018;
0-001-418-001, -002, -005, -0 |
 |
|
|
|
BOSCH Armature
WAI:61-9125 IM2107, IM2102, IM2013.12V
Slots:28
Dim: 138mm OAL11-Splines
7.92mm Shaft OD 9.93mm Shaft OD
REPLACING: 1004011020, 1004011032, 1004011051, 1004011023, 1004011034
REPLACING:
1004011020, 1004011032, 1004011051,
1004011023, 1004011034
SERVCING:
0001108004, 0001108019, 0001108020,
0001108021, 0001108024 |
|
|
