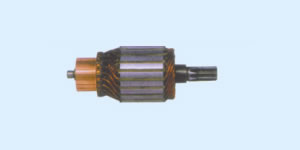

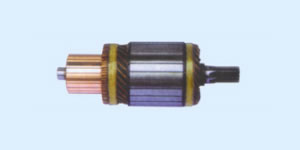

IM3079 12V
Slots:25
Dim:141.00mm OAL
13-Splines
10.0mm Shaft OD 9.0mm Shaft OD
REPLACING: M106X43571, MD618958
REPLACING:
M106X43571, MD618958
SERVCING:
M2T87971, M2T87071, M2T87671,
M2T87971, M2T75071 |

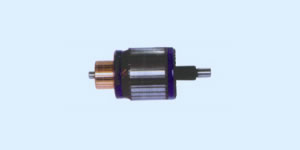

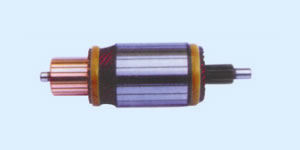

WAI:61-8316 IM3071 12V
Slots:29
Dim:121.00mm OAL
11-Splines
10.0mm Shaft OD 8.0mm Shaft OD
REPLACING: M106X06971, M106X50171, M106X611304, M106X618451
REPLACING:
M106X06971, M106X50171,
M106X611304, M106X618451
SERVCING:
M1T70481, M1T70685, M1T70687,
M1T70881, M1T70281 |

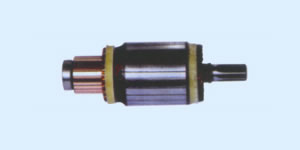

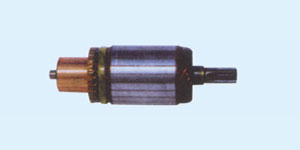

WAI:61-8303 IM3041 12V
Slots:25
Dim:151.00mm OAL
9-Splines
15.0mm Shaft OD 9.0mm Shaft OD
REPLACING: M106X29871, M106X41672
REPLACING:
M106X29871, M106X41672
SERVCING:
M2T56171, M2T56181,
M2T56182, M2T56272, M2T74171
|

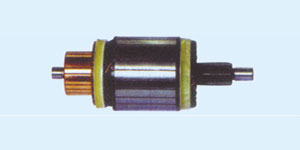

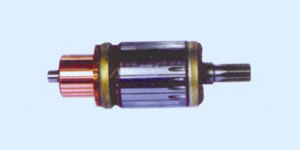

IM3040 24V
Slots:25
Dim:151.00mm OAL
9-Splines
15.0mm Shaft OD 9.0mm Shaft OD
REPLACING: M106X29371
REPLACING:
M106X29371
SERVCING:
M2T64172, M2T64271, M2T64471,
M2T65271, M2T65272, M2T67871,
M2T67881, M2T67882, M2T67872 |
 |
 |
 |
 |

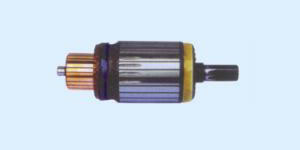

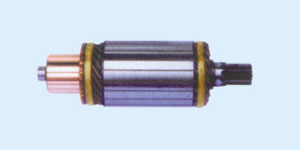

WAI:61-8310 IM3043 12V
Slots:21
Dim:140.00mm OAL
9-Splines
8.0mm Shaft OD 15.0mm Shaft OD
REPLACING: 106X01271, M106X55071, MD607413
REPLACING:
M106X01271, M106X55071, MD607413
SERVICING:
M2T52171, M2T53081, M2T53082,
M2T53085, M2T53181, M2T53281,
M2T58183, M2T58285, M2T58581,
M2T58681, M2T58781, M2T58881 |

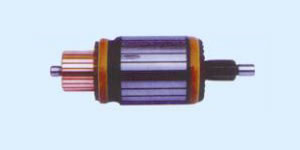

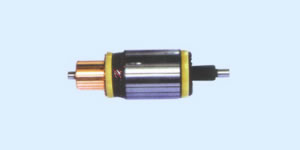

WAI:61-8302 IM3045 12V
Slots:23
Dim:178.00mm OAL
9-Splines
17.00mm Shaft OD 12.00mm Shaft OD
REPLACING:
M106X29271, M106X29272, M106X41971
REPLACING:
M106X29271, M106X29272, M106X41971
SERVCING:
M3T66071, M3T66072, M3T66074,
M3T67171, M3T67172, M3T67281 |

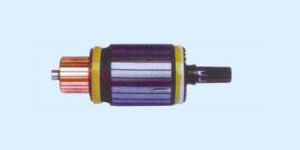

FG-2403 24V
Slots:21
Dim:195.00mm OAL
10-Splines
12.00mm Shaft OD
REPLACING: 8DC9, 8DC11
REPLACING: 8DC9, 8DC11
|

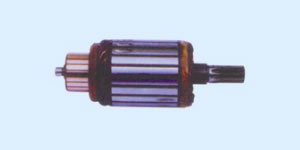

WAI:61-8311 IM3039 12V
Slots:23
Dim:170.00mm OAL
13-Splines
10.00mm Shaft OD 9.0mm Shaft OD
REPLACING: F4TZ-11005-A
REPLACING: F4TZ-11005-A
SERVCING:
F4TZ-1102-A, M8T50071, M8T50171 |
 |
 |
 |
 |
IM3086 24V
Slots:21
Dim:206.00mm OAL
12-Splines
15.00mm Shaft OD 30.00mm Shaft OD
REPLACING: 132040000X0
REPLACING: 132040000X0
SERVCING: 03507020329 |
IM3046 12V
Slots:23
Dim:169.5mm OAL 53.6mm OD
9-Splines
REPLACING:
MITSUBISHI M106X40671, M106X50671
REPLACING:
MITSUBISHI M106X40671, M106X50671
SERVICING:
MITSUBISHI M2T60071, M2T60072,
M2T60171, M2T60172, M2T60185,
M2T60671, M2T92071, M2T92171,
M2T92172, M3T66073 |
IM3031 24V
Slots:31
Teeth:18
L:431.5mm
O.D 87.2mm
REPLACING: M106T21971G
REPLACING: M106T21971G
SERVCING:
M7T03371, M7T03772, M7T03774,
M7T03775, M7T03776, M7T03777,
M7T03778 |
WAI:61-8318
Slots:29
113.5mm OAL, 53.7mm OD
9-Splines
10mm Shaft OD 8mm Shaft OD
REPLACING: M106X58671
WAI: IM3109
PIC # 5003-3339
Replaces: Mitsubishi M106X58671 |
 |
 |
 |
 |
IM3095 24V
Slots:25
Dim:141.00mm OAL 13-Splines
10.0mm Shaft OD 9.0mm Shaft OD
REPLACING:M105X43771, ME701492
REPLACING:M105X43771, ME701492
SERVCING:
M8T80071, M8T80071A,
M8T80171, M8T80471, M8T80472 |
WAI:61-8317 IM3081 12V
Slots:29
Dim:106.8mm OAL 9-Splines
10.0mm Shaft OD 8.0mm Shaft OD
REPLACING:M106X57671, MD619164
REPLACING:M106X57671, MD619164
SERVCING:
M0T80081, M0T80281, M0T80381,
M0T80581, M0T80681, M0T80685 |
WAI:61-8312 IM3042 12V
Slots:21
Dim:148.00mm OAL 9-Splines
8.0mm Shaft OD 15.0mm Shaft OD
REPLACING:M106X01171
REPLACING:M106X01171
SERVCING:
M2T50171, M2T50585, M2T51181,
M2T51281, M2T51282 |
IM3088 24V
Slots:23
Dim:170.0mm OAL 13-Splines
10.00mm Shaft OD 9.0mm Shaft OD
REPLACING: M8T60071AJ
REPLACING: M8T60071AJ |
 |
 |
 |
 |
61-8312(M)
Slots:21
Dim:148.00mm OAL 9-Splines
8.0mm Shaft OD 15.0mm Shaft OD
REPLACING: MITSUBISHI M106X01171
REPLACING: MITSUBISHI M106X01171
SERVICING:
MITSUBISHI M2T50171, M2T50585,
M2T51181, M2T51281, M2T51282,
M2T54085 |
WAI:61-8314 IM3026 24V
Slots:23
Dim:178.00mm OAL 9-Splines
17.00mm Shaft OD 12.00mm Shaft OD
REPLACING: M106X29171
REPLACING: M106X29171
SERVCING:
M3T50176, M3T56072, M3T56074,
M3T56181, M3T56182, M3T57371 |
IM3076 12V
Slots:25
Dim:160.5mm OAL 8-Splines
17.00mm Shaft OD 12.00mm Shaft OD
REPLACING: 132007700X0, 32007701X0
REPLACING: 132007700X0, 32007701X0 |
IM3085 24V
Slots:21
Dim:207.00mm OAL 12-Splines
25.00mm Shaft OD 15.00mm Shaft OD
REPLACING: 132009700X0
REPLACING: 132009700X0
SERVCING:
03506020110, 03506020140, 03506020149,
03506020233, 03506020648
|
 |
 |
 |
 |
IM3013 12V
Slots:33
Dim:217.5mm OAL 60.00mm OD
8-Splines
REPLACING:
M106T01970, M106T17371, M106X52971,
MD602250, MD607552
REPLACING:
M106T01970, M106T17371, M106X52971,
MD602250, MD607552
SERVICING:
23300-U0114, M3T10473, M3T10475,
M3T10476, M3T12572, M3T19071,
M3T19771, M3T20081, M3T20181,
M3T20381, M3T20681, M3T20781,
M3T21281, M3T21282, M3T33582 |
IM3047 12V
Slots:21
Dim:182.5mm OAL 59.9mm OD
8-Splines
REPLACING:
M106T05571, M106T05770, M106T50271
REPLACING:
M106T05571, M106T05770, M106T50271
SERVCING:
M3T32583, M3T27686, M3T29482,
M3T30285, M3T38381, M3T38481 |
WAI:61-8313 IM3061 12V
Slots:29
Dim:121.00mm OAL 11-Splines
10.0mm Shaft OD 10.0mm Shaft OD
REPLACING:
M106T08671, M106X08671, M106X52171
REPLACING:
M106T08671, M106X08671, M106X52171
SERVCING:
M1T60081, M1T60181, M1T60581,
M1T61181, M1T70483 |
6D37 24V
Slots:25
Dim:155.00mm OAL 13-Splines 53.5mm Shaft OD 13-Splines
10.0mm Shaft OD 9.0mm Shaft OD |
 |
 |
 |
 |
AES:3809 24V
Slots:25
Dim:151.5mm OAL 9-Splines
15.0mm Shaft OD 9.0mm Shaft OD
|
AES:1183 24V
Slots:25
Dim:152.00mm OAL 9-Splines
15.0mm Shaft OD 9.0mm Shaft OD |
M106T26471
Slots:31
Dim:151.00mm OAL
20.0mm Shaft OD 12.0mm Shaft OD |
EE-00 CW
Slots:21
Dim:182.6mm OAL
60.00mm OD 8-Splines
10.00mm Shaft OD 12.00mm Shaft OD |
 |
 |
|
|
83045
Slots:23
176mm OAL 60.2mm OD
13-Splines
10mm Shaft OD 9mm Shaft OD |
QD-1109 CCW
Slots:21
Dim:182.6mm OAL
60.00mm OD
8-Splines
10.00mm Shaft OD 12.00Shaft OD |
|
| |
