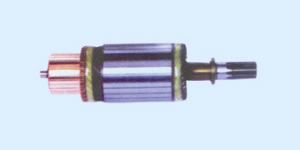

WAI:61-8106 IM3000 12V
Slots:27
Dim: 188.0mm OAL, 52.7mm O.D
11-Splines
REPLACING: 2114-1111,
8971303040
REPLACING: 2114-1111,
8971303040
SERVCING:
8-971502040-0,
8-971505041-0,
S114-800A, S114-801A |

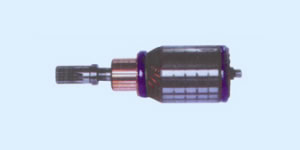

WAI:61-8100 IM3006 12V
Slots:21
Dim: 167.5mm OAL, 52.9mm O.D
11-Splines
REPLACING: 2114-31009,
2114-71005,
2114-71104,
23310-N5900,
5811210390
REPLACING: 2114-31009,
2114-71005,
2114-71104,
23310-N5900,
5811210390
SERVCING:
23300-W1702,
8941514091,
S114-254, S114-254C |

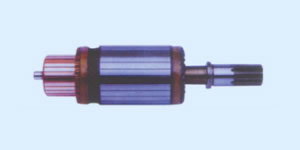

IM3038 12V
Slots:29
Dim: 145.00mm OAL, 50.4mm O.D
9-Splines
REPLACING: 2114-41100
REPLACING: 2114-41100
SERVCING:
S114-802, S114-802A, S114-806, S114-850
|

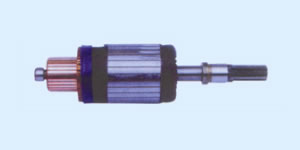

WAI:61-8115 IM3062 12V
Slots:25
Dim: 105.00mm OAL, 57.5mm OD
10-Splines
REPLACING: 2114-31100,
2114-41106,
23310-65F01,
23310-77A00
REPLACING: 2114-31100,
2114-41106, 23310-65F01,
23310-77A00
SERVCING:
S114-517, S114-517C, S114-518, S114-523, S114-526A, S114-705A |
 |
 |
 |
 |

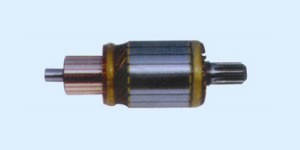

WAI:61-8111 IM3035 12V
Slots:25
Dim: 165.00mm OAL, 60.00mm O.D
11-Splines
REPLACING: 2130-11001
REPLACING: 2130-11001
SERVCING: S13-41 |

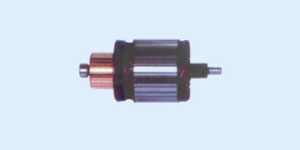

IM3020 12V
Slots:33
Dim: 207.00mm OAL, 65.00mm OD
10-Splines
REPLACING: 2114-61103
REPLACING: 2114-61103
SERVCING: 5810001921, S114-385, S114-629A |

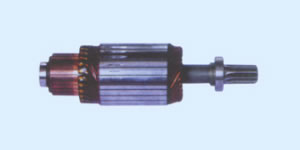

IM3074 12V
Slots:29
Dim:186.5mm OAL, 52.5mm OD
10-Splines
REPLACING: 2114-61104, 2144-61104
REPLACING: 2114-61104, 2144-61104
SERVICING: S114-414, S114-414A |

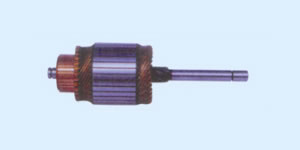

IM3032 24V
Slots:27
Dim:195.00mm OAL, 52.7mm OD
11-Splines
REPLACING: 2240-2100
REPLACING: 2240-2100
SERVCING:
S24-03C, S24-05B, S24-08B, S24-10, S24-12, S24-13 |
 |
 |
 |
 |
WAI:61-8114 IM3044 12V
Slots:29
Dim: 110.00mm, OAL 50.5 mm OD
8-Splines
6.67mm Shaft OD 11.87mm Shaft OD
REPLACING: 2114-1111,
8971303040
REPLACING: 2114-1111,
8971303040
SERVCING:
8-971502040-0,
8-971505041-0,
S114-800A, S114-801A |
WAI:61-8112 IM3063 12V
Slots:25
Dim: 111.0mm OAL, 57.5mm OD
10-Splines
REPLACING: 2114-71105
REPLACING: 2114-71105
SERVCING:
S114-501, S114-503, S114-509, S114-516, S114-516A, S114-519A |
WAI:61-8113 IM3059 12V
Slots:29
Dim:110.00mm OAL
55mm OD
10-Splines
REPLACING: 2114-21100, 2114-31109
REPLACING: 2114-21100, 2114-31109
SERVCING:
S114-750, S114-753B, S114-754A, S114-755, S114-762, S114-762A |
WAI:61-8110 IM3017 24V
Slots:25
Dim:165.00mm OAL, 60.00mm OD
11-Splines
REPLACING: 2270-3100, 23310-99205,
23310-T9006
REPLACING: 2270-3100, 23310-99205,
23310-T9006
SERVCING:
S25-110L, S25-156,
S25-158A, S25-158B, 23300-C8601,
23300-Z5515 |
 |
 |
 |
 |
WAI:61-8117 IM3056 12V
Slots:27
Dim:180.00mm OAL
52.7mm OD
11-Splines
REPLACING: 2130-61004, 23310-0Y000
REPLACING: 2130-61004, 23310-0Y000
SERVCING:
S13-102, S13-102A, S13-200, S13-210B, S13-210C, S13-294, S13-326 |
IM3011 12V
Slots:33
Dim:205.5mm OAL
65.00mm OD
10-Splines
REPLACING: 2114-91001
REPLACING: 2114-91001
SERVCING:
S114-146, S114-180E, S114-181, S114-218, S114-219, S114-247C, S114-313 |
IM3014 24V
Slots:21
Teeth:12
L: 215.5mm
O.D: 74.5mm
REPLACING: 2280-9100, 23310-99109
REPLACING: 2280-9100, 23310-99109
SERVCING: S25-115A, S28-41, S28-42 |
IM3037 12v
Slots:27
Dim:195.00mm OAL
52.7mm OD
11-Splines
REPLACING: 2130-41003, 23310-02N00
REPLACING: 2130-41003, 23310-02N00
SERVCING: 23300-0T02, S13-107A | |
