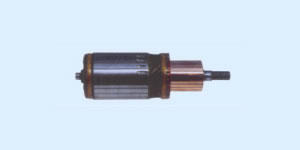

IM3083 24V
Slots:21
Dim:135.5mm OAL
9-Splines
15.00mm Shaft OD 8.00mm Shaft OD
REPLACING: 028200-5050
REPLACING: 028200-5050
SERVICING: 128000-5411,
19883-63012 |

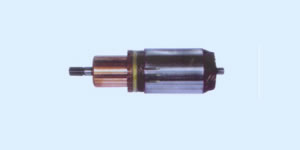

WAI:61-8207 IM3067 12V
Slots:23
Dim:167.5mm OAL 50.4mm O.D
19-Splines
8.00mm Shaft OD 10.00mm Shaft OD
REPLACING: 028200-2140
REPLACING: 028200-2140
SERVCING:
028000-5060,
028000-6250,
028000-7001,
028000-7370,
028000-7373,
028200-7740,
0282000-7791,
028000-9032,
028000-9031,
028000-8762 |
WAI:61-8202 IM3050 12V
Slots:21
Dim:135.5mm OAL
9-Splines
15.00mm Shaft OD 8.00mm Shaft OD
REPLACING: 028200-1531,
028200-2120
REPLACING: 028200-1531,
028200-2120
SERVCING:
028000-6001,
028000-6362,
028000-7190,
028000-7620,
028000-8320 |
WAI:61-8203 IM3023 12V
Slots:23
Dim:187.0mm OAL 60.0mm O.D
9-Splines
17.00mm Shaft OD 10.00mm Shaft OD
REPLACING: 028200-1780,
0282001900
REPLACING: 028200-1780,
0282001900
SERVCING:
028000-5000,
028000-5490,
028000-5560,
028000-5580,
028000-6290,
028000-6410,
028000-6780,
028000-6840,
0282000-6561 |
 |
 |
 |
 |
WAI:61-8208 IM3069 24V
Slots:23
Dim:211.0mm OAL 64.7mm O.D
18-Splines
REPLACING: 028200-5250
REPLACING: 028200-5250
SERVCING:
128000-245, 128000-256, 128000-274, 128000-573, 228000-5610 |
IM3080 12V
Slot:23
Dim:167.5mm OAL 54.2mm O.D
19-Splines
8.00mm Shaft OD 10.00mm Shaft OD
REPLACING: 028200-5040, 228000-1890
REPLACING: 028200-5040, 228000-1890
SERVCING:
128000-0831, 128000-0832, 128000-8350,
128000-5760, 128000-0460, 228000-0880,
228000-1850, 228000-1930 |
IM3070 12V
Slots:23
Teeth:18 L:211mm O.D64.7mm
REPLACING: 028200-2800
REPLACING: 028200-2800
SERVCING:
128000-049, 12800-247, 128000-422, 128000-491, 128000-537, 128000-551, 128000-562, 128000-572, 128000-5600 |
WAI:61-8211 12V
Slots:21
Dim:129.0mm OAL
9-Splines
15.00mm Shaft OD 8.00mm Shaft OD
REPLACING:
Nippondenso 1.4kW OSGR Starters
REPLACING:
Nippondenso 1.4kW OSGR Starters
SERVCING:
128000-700, -714, -739, -750, -781,
-803, -811, -821, -832, -835, -836, -840,
-930, -952, -970, -971, -972, -973, -974 |
 |
 |
|
|
|
IM3068 24V
Slots:23
167.5mm OAL 50.4mm OD
19-Splines
|
WAI:61-8209 IM3010 24V
Slots:23
Dim:187.0mm OAL 60.0mm O.D
9-Splines
17.00mm Shaft OD 10.00mm Shaft OD
REPLACING: 028160-77090,
028200-1590
REPLACING: 028160-77090,
028200-1590
SERVICING: 028000-5510,
028000-5832,
028000-5833,
028000-5840,
028000-6012,
028000-6460,
028000-6461,
028000-6340 |
|
| |
